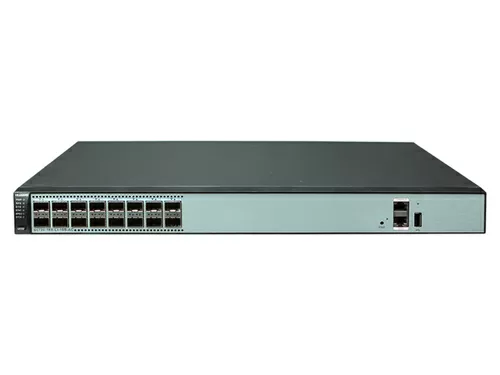

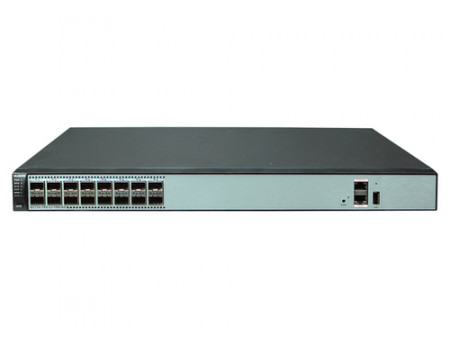

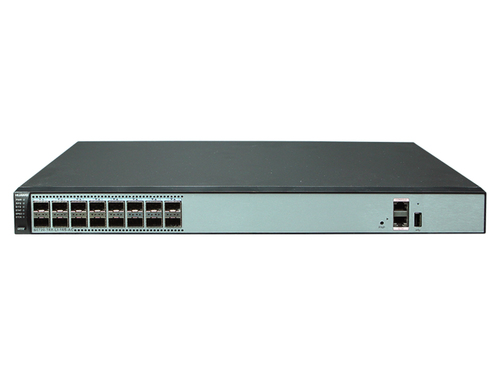

Коммутатор Huawei S6720-16X-LI-16S-AC

Артикул:

S6720-16X-LI-16S-AC

86 469 ₽

1150$

Курс ЦБ 75.19
на

Нашли дешевле?

Гарантия 12 месяцев

- +

В корзину

Купить в 1 клик

Пообщаться с менеджером

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Сравнить

Избранное

Загрузить в pdf

Описание

Характеристика

Коммутатор Huawei S6720-16X-LI-16S-AC

16 x 10 GE SFP+ ports
Built-in AC power supply and Redundant Power Supply (RPS)
USB
Packet forwarding rate: 240 Mpps
Switching capacity: 1.28 Tbit/s

Fixed ports	16 x 10GE SFP+ ports
MAC address table	32K MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN features	4094 VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Basic QinQ and selective QinQ
IPv4 routing	Static routing, RIP, and OSPF VRRP Policy-based routing Routing policies
IPv6 routing	Static routing RIPng OSPFv3
IPv6 features	Neighbor Discovery (ND) and ND snooping IPv6 Ping VRRP6 DHCPv6 snooping, DHCPv6 server, and DHCPv6 relay
Multicast	IGMPv1/v2/v3 snooping Fast leave IGMP snooping proxy Multicast Listener Discovery (MLD) snooping Port-based multicast traffic suppression Inter-VLAN multicast replication Controllable multicast
QoS/ACL	Traffic classification based on ACLs Traffic classification based on outer 802.1p fields, outer VLAN IDs, source MAC addresses, and Ethernet types Access control after traffic classification Traffic policing based on traffic classifiers Re-marking based on traffic classifiers Class-based packet queuing Associating traffic classifiers with traffic behaviors Rate limiting on inbound and outbound ports Traffic shaping based on ports and queues Tail drop Priority Queuing (PQ) Deficit Round Robin (DRR) PQ + DRR scheduling Weighted Round Robin (WRR) PQ + WRR scheduling
Reliability	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover Smart Ethernet Protection (SEP) G.8032 Ethernet Ring Protection Switching (ERPS) Enhanced trunk (E-trunk)
Security features	Defense against DoS, ARP, and ICMP attacks Binding of the IP address, MAC address, port number, and VLAN ID of a user Port isolation, port security, and sticky MAC MAC-Forced Forwarding (MACFF) Limit on the number of learned MAC addresses IEEE 802.1X authentication and the limit on the number of users on a port AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC CPU defense
Super Virtual Fabric (SVF)	SVF Client
Management and maintenance	iStack (using service ports as stack ports) Virtual Cable Test (VCT) Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) SNMPv1/v2/v3 RMON Web-based network management system and relevant features System logs and multi-level alarms GVRP MUX VLAN sFlow SSH2 HTTPS
Operating environment	Working temperature: 0 m–1800 m, 0°C–45°C; 1800 m–5000 m, the highest operating temperature reduces by 1°C every time the altitude increases by 220 m. Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63Hz
Dimensions (width x depth x height)	420 x 220 x 43.6
Typical power consumption	45.2W
