-----Коммутатор Huawei LS-S5328C-HI-24S

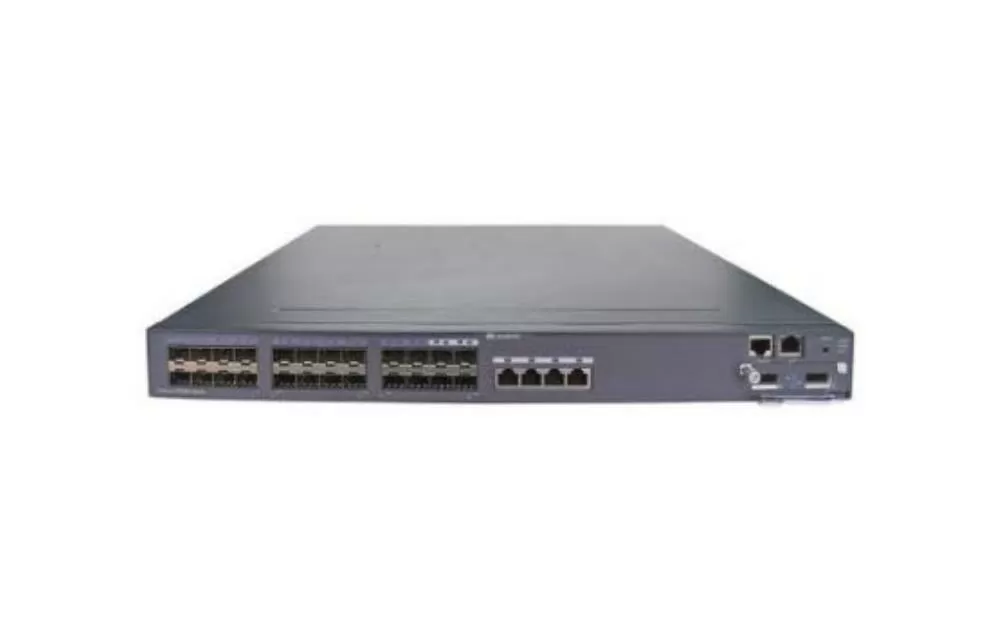

Коммутатор Huawei LS-S5328C-HI-24S

Артикул:

LS-S5328C-HI-24S

507 495 ₽

6900$

Курс ЦБ 73.55
на

Нашли дешевле?

Гарантия 12 месяцев

- +

В корзину

Купить в 1 клик

Пообщаться с менеджером

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Сравнить

Избранное

Загрузить в pdf

Описание

Характеристика

S5300 - это серия гигабитных коммутаторов новые поколения Ethernet. Гигабитные коммутаторы, которые отвечают требованиям для доступа с высокой пропускной способностью и мульти-конвергенции услуг Ethernet, обеспечивают мощный функционал Ethernet для операторов и корпоративных клиентов. Серия S5300 работает на основе высокопроизводительного оборудования нового поколения и Huawei Versatile Routing Platform (VRP), оснащены большой емкостью и гигабитными интерфейсами высокой плотности, что обеспечивает 10G.

Power: need to purchase additional power
Non-POE Switch
Layer 3 Ethernet Switch
Ports: 24 100/1000Base-X Ports
Software: Advanced Version
Stackable switch
Powerful Service Support
High Reliability
Security and QoS

Технические характеристики:

Dimensions: width x depth x height	442 mm x 220 mm x 43.6 mm
Extended slot	The S5300HI provides an extended slot that supports subcards.
Fixed port	twenty-four 10/100/1000Base-T ports
Forwarding performance	96 Mpps
Input voltage	AC: Rated voltage: 100 V to 240 V, 50/60 Hz Maximum voltage: 90 V to 264 V, 50/60 Hz DC: Rated voltage range: -48 V to -60 V Maximum voltage: -36 V to -72 V Note: Models supporting PoE do not use DC power supplies.
IPv4 routing	Supports OSPF, IS-IS, BGP, VRRP, policy-based routing, routing protocol, and other IPv4 routing features supported by the S5300SI.
IPv6 features	Supports Neighbor Discovery (ND). Supports PMTU. Supports IPv6 Ping, IPv6 Tracert, and IPv6 Telnet. Supports 6-to-4 tunnels, ISATAP tunnels, and manually conﬁgured tunnels. Supports ACLs based on the source IPv6 address, destination IPv6 address, Layer-4 port,or protocol type. Supports MLD v1/v2 snooping.
IPv6 routing	Supports OSPFv3 and other IPv6 routing features supported by the S5300SI.
MAC address table	LI/SI: 16 K; EI/HI: 32 K Supports learning and aging of MAC addresses. Supports static, dynamic, and blackhole MAC address entries. Supports packet ﬁltering based on source MAC addresses.
Management andmaintenance	Supports intelligent stacking (The S5300HI and the S5306 do not support this function). Supports MAC Forced Forwarding (MFF). Supports Virtual Cable Test (VCT). Supports Ethernet OAM (IEEE 802.3ah and 802.1ag). Supports local port mirroring, Remote Switched Port Analyzer (RSPAN), and packet forwarding on an observing port. Supports remote conﬁguration and maintenance by using Telnet. Supports SNMP v1/v2/v3. Supports RMON. Supports the Network Management System (NMS) and Web management. Supports HGMP. Supports system logs and multi-level alarms. Supports Dying gasp power-off alarm (the S5306 only). Supports GVRP. Supports MUX VLAN. Supports the Hypertext Transfer Protocol Secure (HTTPS). Supports 802.3az EEE (the S5300HI and the S5306 only).
MPLS features	Supports MPLS. Supports the MPLS VLL.
Multicast	Supports IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP, and other multicast features supported by the S5300SI.
OAM	Hardware implementation EFM OAM CFM OAM Y.1731 performancetest supports hardware-level delay and jitter detection.
Operating environment	Operating temperature: 0°C to 50°C (long term); -5°C to 55°C (short term); relative humidity: 10% to 90% (non-condensing)
Power consumption	< 93 W
QoS/ACL	Supports rate limit on packets sent and received by a port. Supports packet redirection. Supports port-based trafﬁc policing and two-rate three-color CAR. Supports eight queues on each port. Supports multiple queue scheduling algorithms including WRR, DRR, SP, WRR+SP, and DRR+SP. Supports WRED (supported by the S5306 and the S5300HI). Supports re-marking of the 802.1p priority and DSCP priority. Supports packet ﬁltering based on Layer 2 to Layer 4 information, ﬁltering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol, and VLAN ID. Supports queue-based rate limit and trafﬁc shaping on ports.
Reliability	Supports STP, RSTP, and MSTP. Supports BPDU protection, root protection, and loopback protection. Supports the RRPP ring topology and RRPP multi-instance. Supports the Smart Link tree topology and Smart Link multi-instance to implement millisecond-level protective switchover. Supports SEP. EI/HI series support BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM. Supports E-Trunk.
Security	Supports hierarchical user management and password protection. Supports DoS attack defense, ARP attack defense, and ICMP attack defense. Supports binding of the IP address, MAC address, port number, and VLAN ID. Supports port isolation, port security, and sticky MAC. Supports blackhole MAC addresses. Supports limit on the number of MAC addresses to be learned. Supports IEEE 802.1X authentication and the limit on the maximum number of users on a port. Supports multiple authentication methods including AAA, RADIUS, HWTACACS, and NAC. Supports SSH v2. Supports CPU protection. Supports blacklisting and whitelisting.
switching capacity	128 Gbit/s
VLAN features	Supports up to 4,096 VLANs. Supports guest VLANs and voice VLANs. Supports VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports. Supports 1:1 and N:1 VLAN switching. Supports basic QinQ and selective QinQ.
