-----Коммутатор Huawei S3700-26C-HI, 02353628

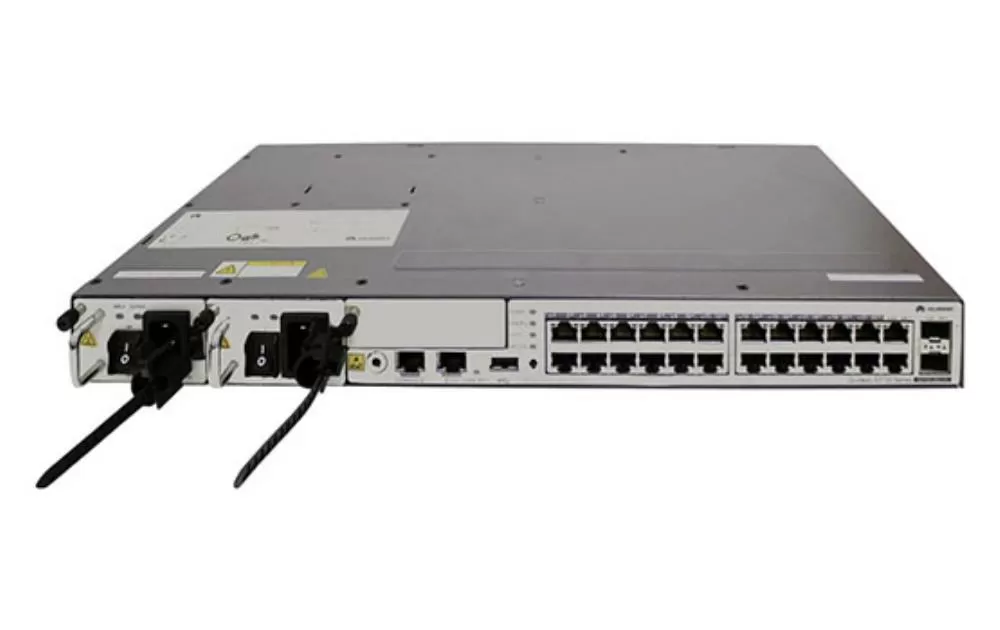

Коммутатор Huawei S3700-26C-HI, 02353628

Артикул:

S3700-26C-HI

100 386 ₽

1350$

Курс ЦБ 74.36
на

Нашли дешевле?

Гарантия 12 месяцев

- +

В корзину

Купить в 1 клик

Пообщаться с менеджером

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Сравнить

Избранное

Загрузить в pdf

Описание

Характеристика

Коммутатор Huawei S3700-26C-HI Mainframe (22 FE RJ45,2 GE Combo,Dual Slots of power,Single Slot of Flexible Card,Without Flexible Card and Power Module).

Need to purchase additional power AC W0PSA1701 or DC ES5M0PSD1700
Non-POE Switch
Support Extended Slot: ES3D000G2S00 2GE SFP
Layer 3 Ethernet Switch
Port: 22 FE, 2 GE Combo ports
Software: Advanced Version
iStack intelligent stacking
Hardware based BFD
Support RIP, OSPF, BGP, IS-I

Модель	S3700-26 C-HI
100M port	22*10/100Base-TX
1000M port	2*(10/100/1000Base-T, or 100/1000Base-X)
Слоты расширения	The S3700HI provides an extended slot for an uplink subcard
Таблица MAC адресов	32 K MAC address entries Same as EI for the other items
VLAN	4 K VLANs Guest VLANs, voice VLAN, and super VLAN VLAN assignment based on MAC addresses, protocols, and IP subnets QinQ Selective QinQ 1:1 VLAN mapping N:1 VLAN mapping
Надежность	Enhanced Trunk (E-Trunk) Same as EI for the other items BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
IP-маршрутизация	Static routing, RIPv1, RIPv2, and ECMP OSPF, IS-IS, and BGP

Dimensions: width x depth x height	442 mm x 220 mm x 43.6 mm
Extended slot	provides an extended slot for an uplink subcard
Forwarding performance	9.3 Mpps
IP routing	Static routing, RIPv1, RIPv2, and ECMP OSPF, IS-IS, and BGP
IPv6 features	Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet Manually conﬁgured tunnel 6to4 tunnel ISATAP tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping
MAC address table	IEEE 802.1d compliance 32 K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
Management and maintenance	MAC Forced Forwarding (MFF) Remote conﬁguration and maintenance using Telnet Auto-Conﬁg. Virtual cable test Ethernet OAM (IEEE 802.3ah and 802.1ag) Dying gasp power-off alarm Port mirroring and RSPAN (remote port mirroring) SNMPv1/v2/v3 and RMON MUX VLAN and GVRP Web NMS Auto-Conﬁg and HGMP SSHv2 HTTPS 802.3az EEE System logs and alarms of different levels
Multicast	2048 multicast groups IGMP v1/v2/v3 snooping and IGMP fast leave Multicast VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM
Operating environment	Operating temperature: 0°C-50°C (long term); -5°C-55°C (short term) Relative humidity: 10%-90% (non-condensing)
Port	Twenty-two 10/100Base- TX ports, two gigabit(GE) combo ports
Power consumption	< 50 W
Power supply	AC: Rated voltage range: 100 V to 240 V AC; 50/60 Hz Maximum voltage range: 90 V to 264 V AC; 50/60 Hz DC: Rated voltage range: -48 V to -60 V DC Maximum voltage range: -36 V to -72 V DC
QoS/ACL	Rate limiting on packets sent and received by an interface Packet redirection Port-based trafﬁc policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p priority and DSCP priority Packet ﬁltering on Layers 2 through 4, ﬁltering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID Rate limiting in each queue and trafﬁc shaping on ports
Reliability	RRPP (ring topology, intersecting rings, and multi-instance), implementing protection switchover within 50 ms Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) BPDU protection, root protection, and loop protection Smart Ethernet Protection (SEP) ERPS Enhanced Trunk (E-Trunk) , BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
Security	User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 CPU defense Blacklist and whitelist
Surge protection	6KV surge protection capability on service ports
VLAN features	4 K VLANs Guest VLANs, voice VLAN, and super VLAN VLAN assignment based on MAC addresses, protocols, and IP subnets QinQ Selective QinQ 1:1 VLAN mapping N:1 VLAN mapping
Weight	<3.3KG (without power supply)
