-----Коммутатор Huawei LS-S2318TP-EI-DC, 02351369

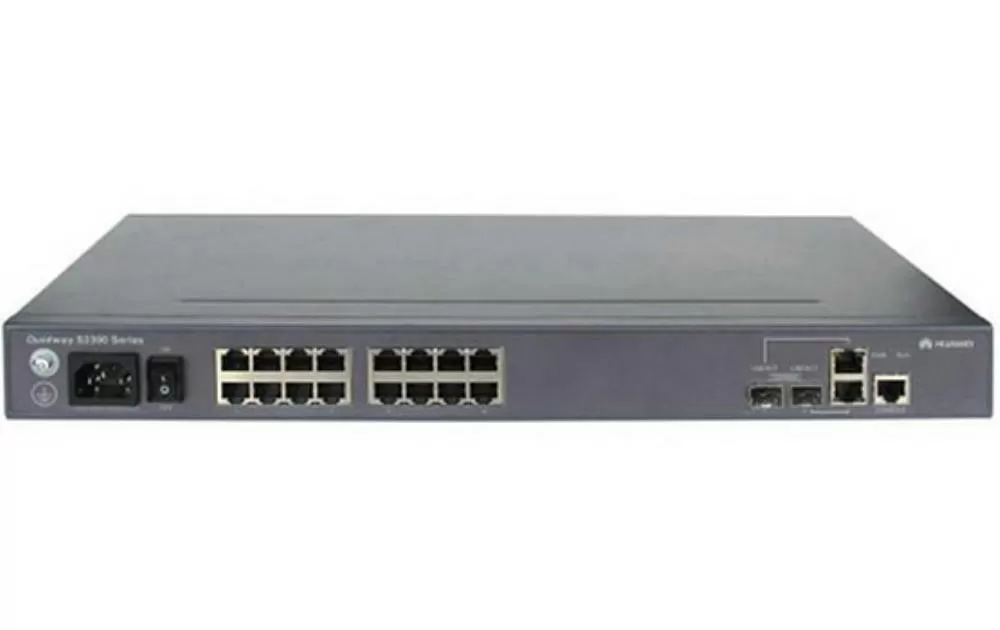

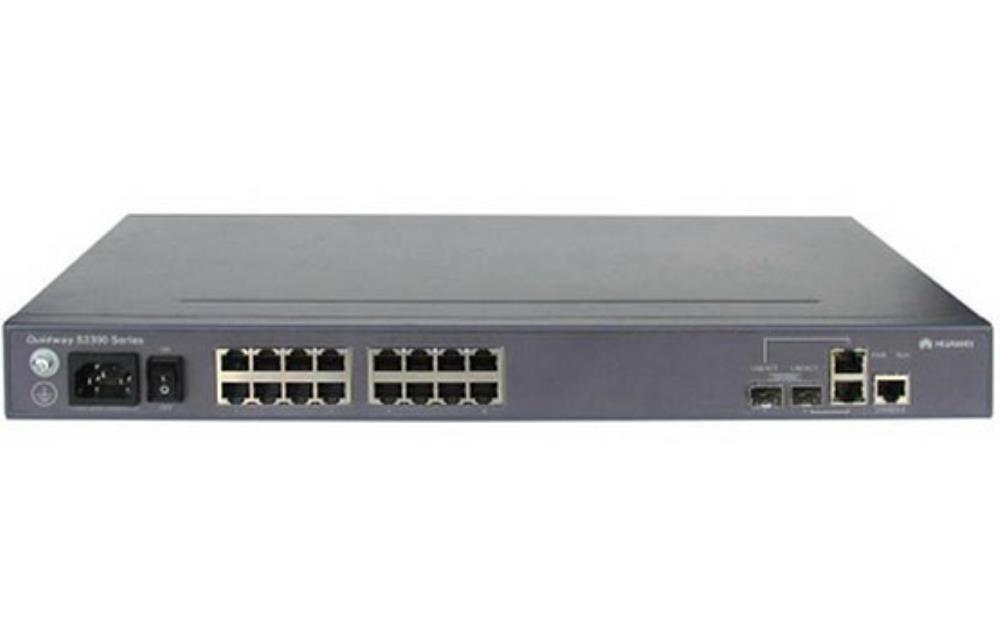

Коммутатор Huawei LS-S2318TP-EI-DC, 02351369

Артикул:

LS-S2318TP-EI-DC

27 457 ₽

360$

Курс ЦБ 76.27
на

Нашли дешевле?

Гарантия 12 месяцев

- +

В корзину

Купить в 1 клик

Пообщаться с менеджером

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Сравнить

Избранное

Загрузить в pdf

Описание

Характеристика

Коммутаторы серии S2300 - это поколение новых интеллектуальных коммутаторов доступа Ethernet. Серия S2300 главным образом реализована на IP Man и Интранет, отвечающих требованиям проведения различных сервисов Ethernet и доступ к сети Ethernet. На основе нового высокопроизводительного оборудования и универсальной платформе маршрутизации (vrp), S2300 поддерживает богатые и гибкие возможности обслуживания и тем самым повышает работоспособность, управляемость, расширяемость и услуги. Кроме того, S2300 поддерживает мощная молниезащита, функции безопасности, ACL, а люди qinq, 1:1 коммутацию VLAN, и N:1 VLAN и переключение гибкое развертывание сетей VLAN.

DC Power
Non-POE Switch
Layer 2 Ethernet Switch
Ports: 16 FE and 2 GE combo
Software: Enhanced Version
Powerful Surge Protection
VLAN-based Service Control
No Noise, Energy Saving, and Low Radiation
Maintenance-Free, Easy Deployment and Easy Management

Технические характеристики:

Backplane switching capacity	32 Gbit/s
Dimensions: width x depth x height	442 mm x 220 mm x 43.6 mm
Forwarding performance	5.4 Mpps
IPv6 features	Supports IPv6 host functions. Supports static route conﬁguration. Supports IPv6 ACL. Supports MLD v1/v2 snooping.
MAC address table	Supports 8 K MAC address entries. Supports manual addition and deletion of a MAC address table. Supports conﬁguration of MAC address aging time. Supports disabling of MAC address learning based on port or aggregation group. Supports limit on the number of MAC addresses to be learned on a port. Supports blackhole MAC addresses.
management	Supports iStack. Supports automatic conﬁguration. Supports CLI conﬁguration. Supports remote conﬁguration and maintenance by using Telnet. Supports SNMP v1/v2/v3. Supports RMON. Supports HGMP v2. Supports SSH v2. Supports Web management. Supports GVRP.
Multicast	Supports IGMP v1/v2/v3 snooping. Supports multicast load sharing among bundled ports. Supports port-based multicast rate limit and trafﬁc statistics.
Operating environment	Operating temperature: 0°C to 50°C (long term); -5°C to 55°C (short term); relative humidity: 10% to 90% (non-condensing)
Port	Sixteen 10/100Base-TX ports, two 10/100/1000Base-T or 100/1000Base-X ports
Port mirroring	Supports 1:1 or N:1 port mirroring. Supports Remote Switched Port Analyzer (RSPAN) and trafﬁc-based mirroring. Supports packet forwarding on an observing port.
Port switching capacity	7.2 Gbit/s
Power consumption	< 14.5 W
Power supply	DC: Rated voltage: -48 V to -60 V Maximum voltage: -36 V to -72 V Note: Models supporting PoE do not use DC power supplies.
QoS	Supports port rate limit and trafﬁc rate limit. Supports four queues with different priorities on each port. Supports mapping of packets to different queues based on 802.1p. Supports multiple algorithms including SP, WRR, and SP+WRR. Supports trafﬁc classiﬁcation based on source MAC address, destination MAC address, source IP ddress, destination IP address, Layer-4 port number protocol type, VLAN ID, Ethernet frame protocol type, and CoS. Supports trafﬁc-based priority marking and packet redirection
Security	Supports IEEE 802.1X authentication and the limit on the maximum number of users on a port. Supports dynamic ARP detection. Supports IP Source Guard. Supports multiple authentication methods including AAA, RADIUS, HWTACACS+, and NAC. Supports binding of the IP address, MAC address, port number, and VLAN ID. Support port rate limit. Supports port isolation, port security, and sticky MAC. Supports packet ﬁltering. Supports packet ﬁltering based on MAC addresses. Supports suppression of multicast, broadcast, and unknown single-cast packets. Supports limit on the number of MAC addresses to be learned. Supports CPU protection.
Surge protection	Each port has a surge protection capability of 6 KV. Each port has a surge protection capability of 15 KV after an extra surge protection device is added.
VLAN features	Supports IEEE 802.1Q (VLAN) and 4096 VLANs. Supports port-based VLAN. Supports MAC-based VLAN. Supports basic QinQ. Supports 1:1 VLAN switching. Supports N:1 VLAN switching.
Weight	< 2.4 kg
