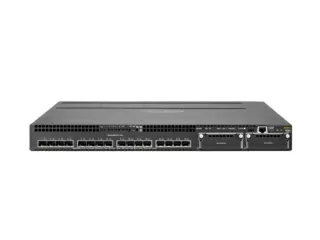

Коммутатор Aruba 3810М 24SFP+250W Swch, JL430A

Артикул:

JL430A

1 001 757 ₽

13100$

Курс ЦБ 76.47
на

Нашли дешевле?

Гарантия 12 месяцев

- +

В корзину

Купить в 1 клик

Пообщаться с менеджером

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Сравнить

Избранное

Загрузить в pdf

Описание

Характеристика

Коммутаторы Aruba серии 3810 обеспечивают производительность и отказоустойчивость в сетях крупных предприятий, филиалов и компаний малого и среднего бизнеса. Благодаря мультигигабитным портам HPE Smart Rate для высокоскоростных устройств 802.11ac этот передовой коммутатор уровня Layer 3 позволяет более эффективно работать с приложениями за счет малого времени задержки, виртуализации с надежной технологией стекирования и пропускной способности 40GbE для большого количества обратных соединений. Коммутаторы Aruba 3810 удобны в развертывании и эксплуатации благодаря использованию современных средств управления сетями и обеспечения безопасности, таким как Aruba ClearPass Policy Manager и Aruba AirWave, а также облачного решения Aruba Central.

I/O ports and slots	24 SFP+ fixed 1000/10000 SFP+ ports; Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; Ports 1-24 support MACSec Supports a maximum of 24 SFP+ ports or 2 40 GbE ports, with optional module(s) or 4 Smart Rate ports
Additional ports and slots	1 stacking module slot 1 RJ-45 serial console port 1 RJ-45 out-of-band management port 1 dual-personality (RJ-45 or USB micro-B)
Power supplies	2 power supply slots 1 power supply included 1 minimum power supply required (ordered separately
Physical characteristics	44.25 x 43.13 x 4.39 cm
Weight	7.06 kg
Memory and processor	P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal
Performance
1000 Mb Latency	< 2.8 µs (FIFO 64-byte packets)
10 Gbps Latency	< 1.8 µs (FIFO 64-byte packets)
40 Gbps Latency	< 1.5 µs (FIFO 64-byte packets)
Throughput	up to 285.7 Mpps (64-byte packets)
Routing/Switching capacity	480 Gbps
Switch fabric speed	508 Gbps
Routing table size	10000 entries (IPv4), 5000 entries (IPv6)
Environment
Operating temperature	32°F to 113°F (0°C to 45°C)
Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
Acoustic	Power: 39 dB, Pressure: 22.3 dB
Primary Airflow Direction	Front to Side and Front to Rear
STANDARDS AND PROTOCOLS
BGP	• RFC 1997 BGP Communities Attribute • RFC 2918 Route Refresh Capability • RFC 4271 A Border Gateway Protocol 4 (BGP-4) • RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP) • RFC 4724 Graceful Restart Mechanism for BGP • RFC 5492 Capabilities Advertisement with BGP-4
Denial of service protection	• CPU DoS Protection
Device management	• RFC 1591 DNS (client) • RFC 2576 (Coexistence between SNMP V1, V2, V3) • RFC 2579 (SMIv2 Text Conventions) • RFC 2580 (SMIv2 Conformance) • RFC 3416 (SNMP Protocol Operations v2) • RFC 3417 (SNMP Transport Mappings) • HTML and telnet management
General protocols	• IEEE 802.1ad Q-in-Q • IEEE 802.1AX-2008 Link Aggregation • IEEE 802.1D MAC Bridges • IEEE 802.1p Priority • IEEE 802.1Q VLANs • IEEE 802.1s Multiple Spanning Trees • IEEE 802.1v VLAN classification by Protocol and Port • IEEE 802.1w Rapid Reconfiguration of Spanning Tree • IEEE 802.3ad Link Aggregation Control Protocol (LACP) • IEEE 802.3af Power over Ethernet • IEEE 802.3az Energy Efficient Ethernet • IEEE 802.3x Flow Control • IEEE 802.3bz 2.5 Gbps and 5 Gbps interfaces • RFC 768 UDP • RFC 783 TFTP Protocol (revision 2) • RFC 792 ICMP • RFC 793 TCP • RFC 826 ARP • RFC 854 TELNET • RFC 868 Time Protocol • RFC 951 BOOTP • RFC 1058 RIPv1 • RFC 1350 TFTP Protocol (revision 2) • RFC 1519 CIDR • RFC 1542 BOOTP Extensions • RFC 1918 Address Allocation for Private Internet • RFC 2030 Simple Network Time Protocol (SNTP) v4 • RFC 2131 DHCP • RFC 2453 RIPv2 • RFC 2548 (MS-RAS-Vendor only) • RFC 3046 DHCP Relay Agent Information Option • RFC 3575 IANA Considerations for RADIUS • RFC 3576 Ext to RADIUS (CoA only) • RFC 3768 VRRP • RFC 4675 RADIUS VLAN & Priority • RFC 5798 VRRP (exclude Accept Mode and sub-sec timer) • RFC 5880 Bidirectional Forwarding Detection • RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification • UDLD (Uni-directional Link Detection)
IP multicast	• RFC 3376 IGMPv3 • RFC 3973 PIM Dense Mode • RFC 4601 PIM
IPv6	• RFC 1981 IPv6 Path MTU Discovery • RFC 2080 RIPng for IPv6 • RFC 2081 RIPng Protocol Applicability Statement • RFC 2082 RIP-2 MD5 • RFC 2375 IPv6 Multicast Address Assignments • RFC 2460 IPv6 Specification • RFC 2464 Transmission of IPv6 over Ethernet Networks • RFC 2710 Multicast Listener Discovery (MLD) for IPv6 • RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only) • RFC 3019 MLDv1 MIB • RFC 3315 DHCPv6 (client only) • RFC 3484 Default Address Selection for IPv6 • RFC 3587 IPv6 Global Unicast Address Format • RFC 3596 DNS Extension for IPv6 • RFC 3810 MLDv2 (host joins only) • RFC 4022 MIB for TCP • RFC 4087 IP Tunnel MIB • RFC 4113 MIB for UDP • RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers • RFC 4251 SSHv6 Architecture • RFC 4252 SSHv6 Authentication • RFC 4253 SSHv6 Transport Layer • RFC 4254 SSHv6 Connection • RFC 4291 IP Version 6 Addressing Architecture • RFC 4293 MIB for IP • RFC 4294 IPv6 Node Requirements • RFC 4419 Key Exchange for SSH • RFC 4443 ICMPv6 • RFC 4541 IGMP & MLD Snooping Switch • RFC 4861 IPv6 Neighbor Discovery • RFC 4862 IPv6 Stateless Address Auto-configuration • RFC 5095 Deprecation of Type 0 Routing Headers in IPv6 • RFC 5340 OSPFv3 for IPv6 • RFC 5453 Reserved IPv6 Interface Identifiers • RFC 5519 Multicast Group Membership Discovery MIB (MLDv2 only) • RFC 5722 Handling of Overlapping IPv6 Fragments • RFC 6620 FCFS SAVI • draft-ietf-savi-mix
MIBs	• IEEE 802.1ap (MSTP and STP MIB’s only) • IEEE 8021-Bridge-MIB (2008) • IEEE 8021-Q-Bridge-MIB (2008) • RFC 1155 Structure & ID of Mgmt Info for TCP/IP Internets • RFC 1213 MIB II • RFC 1493 Bridge MIB • RFC 1724 RIPv2 MIB • RFC 1850 OSPFv2 MIB • RFC 2021 RMONv2 MIB • RFC 2096 IP Forwarding Table MIB • RFC 2578 Structure of Management Information Version 2 (SMIv2) • RFC 2613 SMON MIB • RFC 2618 RADIUS Client MIB • RFC 2620 RADIUS Accounting MIB • RFC 2665 Ethernet-Like-MIB • RFC 2668 802.3 MAU MIB • RFC 2674 802.1p and IEEE 802.1Q Bridge MIB • RFC 2737 Entity MIB (Version 2) • RFC 2787 VRRP MIB • RFC 2863 The Interfaces Group MIB • RFC 2925 Ping MIB • RFC 2932 IP (Multicast Routing MIB) • RFC 2933 IGMP MIB • RFC 3411 SNMP Management Frameworks • RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP) • RFC 3413 Simple Network Management Protocol (SNMP) Applications • RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3) • RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP) • RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) • RFC 4836 Managed Objects for 802.3 Medium Attachment Units (MAU) • RFC 7331 BFD MIB
Network management	• IEEE 802.1AB Link Layer Discovery Protocol (LLDP) • RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events) • RFC 3176 sFlow • RFC 5424 Syslog Protocol • ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED) • SNMPv1/v2c/v3 • XRMON
OSPF	• RFC 2328 OSPFv2 • RFC 3101 OSPF NSSA • RFC 3623 Graceful OSPF Restart (Unplanned Outages only) • RFC 5340 OSPFv3 for IPv6
QoS/CoS	• RFC 2474 DiffServ Precedence, including 8 queues/port • RFC 2475 DiffServ Architecture • RFC 2597 DiffServ Assured Forwarding (AF) • RFC 2598 DiffServ Expedited Forwarding (EF)
Security	• IEEE 802.1X Port Based Network Access Control • RFC 1321 The MD5 Message-Digest Algorithm • RFC 2698 A Two Rate Three Color Marker • RFC 2818 HTTP Over TLS RFC 1492 TACACS+ • RFC 2865 RADIUS (client only) • RFC 2866 RADIUS Accounting • RFC 3579 RADIUS Support For Extensible Authentication Protocol (EAP) • Secure Sockets Layer (SSL) • SSHv2 Secure Shell
