-----Коммутатор Huawei CE6810-24S2Q-LI

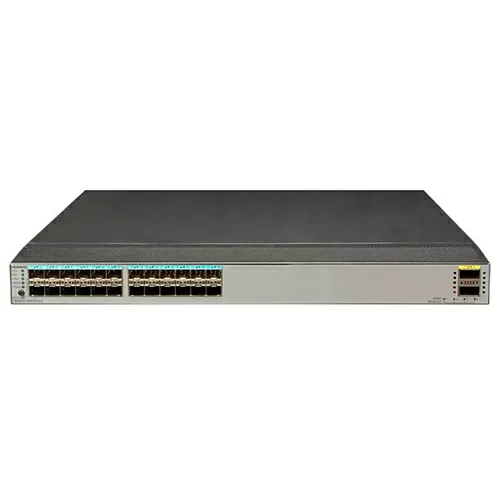

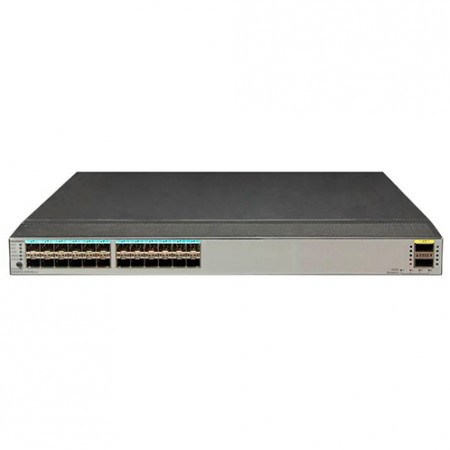

Коммутатор Huawei CE6810-24S2Q-LI

Артикул:

CE6810-24S2Q-LI

322 193 ₽

4250$

Курс ЦБ 75.81
на

Нашли дешевле?

Гарантия 12 месяцев

- +

В корзину

Купить в 1 клик

Пообщаться с менеджером

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Сравнить

Избранное

Загрузить в pdf

Описание

Характеристика

CE6810-24S2Q-LI 24*10GE SFP+ ports, 2*40GE QSFP+ ports

SFP+ ports	24
QSFP+ ports	2
Switching capacity	640 Gbit/s
Forwarding rate	480Mpps
Airflow design	Front-to-back or back-to-front
Device virtualization	iStack Super Virtual Fabric (SVF) M-LAG
Traffic analysis	NetStream sFlow
VLAN	Adding access, trunk, and hybrid interfaces to VLANs Default VLAN QinQ MUX VLAN GVRP
ACL	Ingress:1250 Egress:500
MAC address table	Maximum:128k Dynamic learning and aging of MAC addresses Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses MAC address limiting based on ports and VLANs
ARP (Maximum)	1.5k
IPv4 FIB (Maximum)	1.5k
IP routing	IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
Multicast	IGMP snooping MLD-Snooping
Reliability	LACP STP, RSTP, VBST, MSTP BPDU protection, root protection, and loop protection Smart Link and multi-instance DLDP, LLDP ERPS (G.8032) VRRP, VRRP load balancing, and BFD for VRRP
QoS	Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority Actions of ACL, CAR, re-marking, and scheduling Queue scheduling algorithms, including PQ, WRR, DRR, PQ+WRR, and PQ+DRR Congestion avoidance mechanisms, including WRED and tail drop Traffic shaping
Configuration and maintenance	Console, Telnet, and SSH terminals Network management protocols, such as SNMPv1/v2c/v3 File upload and download through FTP and TFTP BootROM upgrade and remote upgrade 802.3az Energy Efficient Ethernet (EEE) Hot patches User operation logs ZTP
Security and management	802.1x authentication Command line authority control based on user levels, preventing unauthorized users from using commands DoS, ARP, and ICMP attack defenses Port isolation, port security, and sticky MAC Binding of the IP address, MAC address, interface number, and VLAN ID Authentication methods, including AAA, RADIUS, and HWTACACS Remote Network Monitoring (RMON)
Dimensions (W x D x H, mm)	442 x 600 x 43.6
Weight (fully loaded)	10.1 kg (22.3 lb)
Environmental parameters	Operating temperature: 0°C to 40°C (32°F to 104°F) (0 m to 1,800 m) Storage temperature: -40°C to +70°C (-40°F to 158°F) Relative humidity: 5% RH to 95% RH, non-condensing
Operating voltage	AC: 90 V to 290 V DC: -38.4V to -72V
Max. power consumption	171W
