-----Коммутатор Huawei S5720-52X-PWR-SI-ACF, 02350DLY

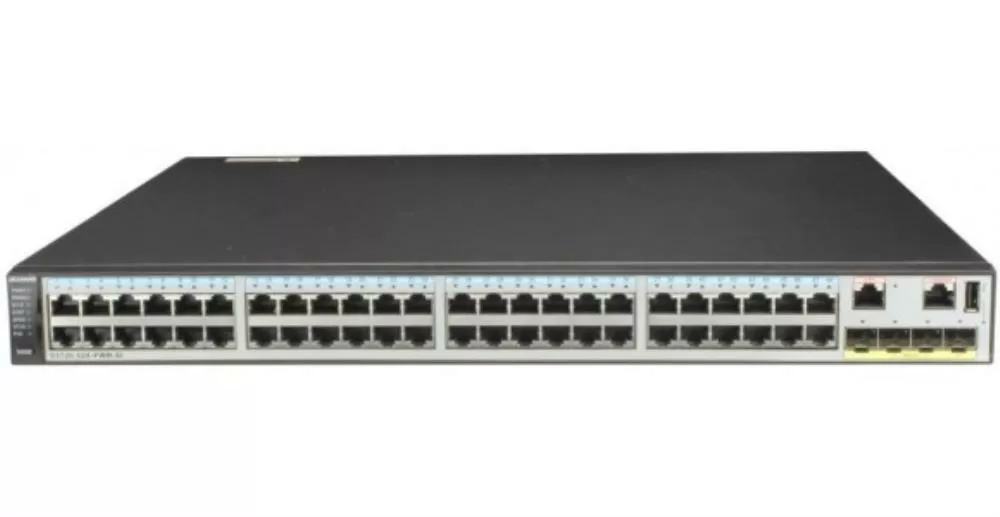

Коммутатор Huawei S5720-52X-PWR-SI-ACF, 02350DLY

Артикул:

02350DLY

Новинка

175 605 ₽

2300$

Курс ЦБ 76.35
на

Нашли дешевле?

Гарантия 12 месяцев

- +

В корзину

Купить в 1 клик

Пообщаться с менеджером

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Сравнить

Избранное

Загрузить в pdf

Описание

Характеристика

48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+
Dual pluggable AC power supplies, one 1150 W AC power supply equipped by default
PoE+
Forwarding performance: 132 Mpps
Switching capacity: 336 Gbit/s

Port	48 Ethernet 10/100/1000 PoE+ ports,4 10 Gig SFP+
Forwarding performance	132 Mpps
Switching capacity	336 Gbit/s
MAC address table	IEEE 802.1d compliance 16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN	4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
Reliability	RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) ERPS (G.8032) BPDU protection, root protection, and loop protection
IP routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
IPv6 features	Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet 6to4 tunnel, ISATAP tunnel, and manually configured tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping
Multicast	PIM DM, PIM SM, PIM SSM IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
Security	Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 HTTPS CPU defense Blacklist and whitelist IEEE 802.1x authentication, MAC address authentication, and Portal authentication DHCPv4/v6 client/relay/server/snooping Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets
SVF	Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running
OAM	Software OAM: EFM OAM CFM OAM Y.1731 performance test
Management and maintenance	iStack (using service ports as stack ports) Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different levels sFlow
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST) Supports LNP (Similar to DTP) Supports VCMP (Similar to VTP)
Operating environment	Operating temperature: 0-1800 m altitude: 0o C to 45o C 1800-5000 m altitude: The operating temperature reduces by 1o C every time the altitude increases by 220 m. Relative humidity: 5% to 95% (non-condensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50 Hz to 60 Hz Maximum voltage range: 90 V to 264 V AC, 47 Hz to 63 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V, DC
Dimensions (W x D x H, mm)	442×420× 44.4 When 1150 W power modules are installed, the total depth of the switch changes to 507.3 mm
Typical power consumption	without PD: 57 W; with PD: <1631.5 W (PoE: 1440 W)
