-----Коммутатор Huawei S5700-10Р-LI-AC

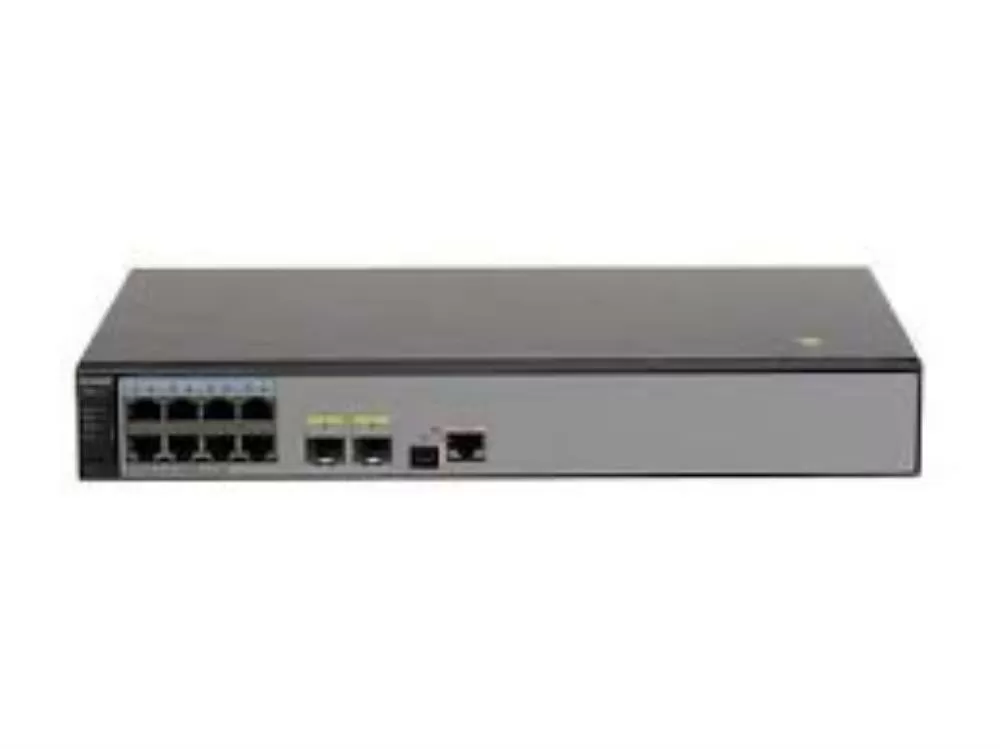

Коммутатор Huawei S5700-10Р-LI-AC

Артикул:

S5700-10Р-LI-AC

27 592.50 ₽

390$

Курс ЦБ 70.75
на

Нашли дешевле?

Гарантия 12 месяцев

Под заказ

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Пообщаться с менеджером

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Сравнить

Загрузить в pdf

Описание

Характеристика

S5700-10P-LI-AC
• 8x10/100/1000Base-T Ethernet ports, 2xGE SFP ports
• AC power supply
• Forwarding performance: 15 Mpps
• Switching Capacity: 256 Gbps

Fixed ports	8x10/100/1000Base-T Ethernet ports, 2xGE SFP ports
MAC address table	MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC learning limiting 16K MAC address entries
VLAN features	4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces 1:1 and N:1 VLAN mapping
Jumbo frame	10K
Reliability	RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) BPDU protection, root protection, and loop protection BPDU tunnel
IP routing	Static route, RIP, RIPng (5700-10P-LI-AC/S5700-10P-PWR-LI-AC do not support RIPng)
IPv6 features	Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, and protocol type MLDv1/v2 snooping
Multicast	IGMPv1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Interface-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by an interface Packet redirection Interface-based traffic policing and two-rate and three-color CAR Eight queues on each interface WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/ UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on interfaces
Security	Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface number, and VLAN ID Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH V2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist
Access Security	DHCP relay, DHCP server, DHCP snooping, and DHCP security
Lightning protection	Service interface: 6 kV
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations Supports independent running client
Management and maintenance	iStack(excluding S5700-10P-LI-AC, S5700-10P-PWR-LI-AC, S5700S-28P-LI-AC, S5700S52P-LI-AC and battery LAN switches) Virtual Cable Test (VCT) Remote configuration and maintenance using Telnet SNMP v1/v2c/v3 RMON eSight and web-based NMS HTTPS LLDP/LLDP-MED System logs and multi-level alarms 802.3az EEE Dying Gasp (excluding battery LAN switches) Device hibernation mode (excluding PWR serials switches, battery LAN switches,S5700- 10P-LI, S5700-28X-LI-24S, S5701-28X-LI-24S-AC and S5700-52X-LI-48CS-AC)
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST) Supports LNP (Similar to DTP) Supports VCMP (Similar to VTP)
Operating environment	Long-term operating temperature: 0o C to 45o C Relative humidity: 5% to 95% (noncondensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V, DC Note: Models supporting PoE do not use DC power supplies.
Power socket position	LI-AC: rear power socket
Battery	One slot for lead-acid battery charger module (supported by battery LAN switches)
Dimensions (W x D x H)	250 mm x 180 mm x 43.6 mm
Power consumption	AC <11.5W
