Артикул:
S2700-26TP-PWR-EI-AC

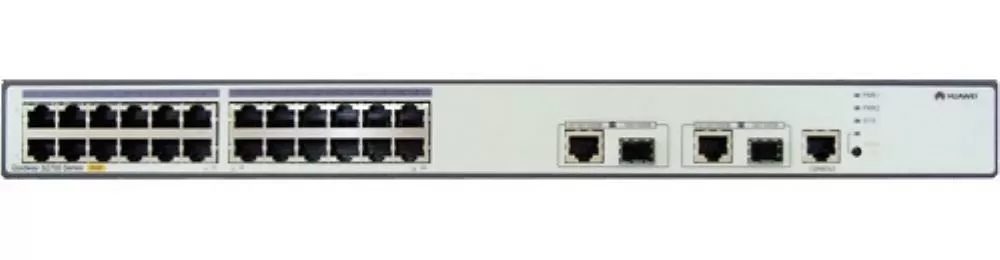

Коммутатор Huawei S2700-26TP-PWR-EI-AC
Подробности
Пообщаться с менеджером
Характеристики
Базовая единица
—
шт
Производитель
—
Huawei
PoE бюджет, W
—
370
Интерфейсы 10/100BaseTX
—
24
Тип устройства
—
Коммутатор
Количество основных портов
—
24
Все характеристики
Коммутатор Huawei S2700-26TP-PWR-EI-AC
24 Ethernet 10/100 ports, 2 dual-purpose 10/100/1,000 or SFP
AC power supply
PoE+
Forwarding performance: 6.6 Mpps
Switching capacity: 32 Gbit/s
Downlink Ports 24 x 10/100 Base-TX
Uplink Ports 2 dual-purpose 10/100/1,000 or SFP
MAC Address
8K MAC address entries
Manual deletion of dynamic MAC address entries
Aging time of MAC address configurable
Blackhole MAC address entries
MAC address learning control based on ports
VLAN Feature
4K active VLANs, complying with IEEE 802.1Q
Port-based VLAN assignment
MAC address-based assignment
Port-based QinQ
QoS
Port-based rate limiting and flow-based rate limiting
4 or 8 queues of different priorities on each port
Mapping between 802.1p priorities and queues
SP, WRR, and SP + WRR algorithms
24 Ethernet 10/100 ports, 2 dual-purpose 10/100/1,000 or SFP
AC power supply
PoE+
Forwarding performance: 6.6 Mpps
Switching capacity: 32 Gbit/s
Downlink Ports 24 x 10/100 Base-TX
Uplink Ports 2 dual-purpose 10/100/1,000 or SFP
MAC Address
8K MAC address entries
Manual deletion of dynamic MAC address entries
Aging time of MAC address configurable
Blackhole MAC address entries
MAC address learning control based on ports
VLAN Feature
4K active VLANs, complying with IEEE 802.1Q
Port-based VLAN assignment
MAC address-based assignment
Port-based QinQ
QoS
Port-based rate limiting and flow-based rate limiting
4 or 8 queues of different priorities on each port
Mapping between 802.1p priorities and queues
SP, WRR, and SP + WRR algorithms
|
Базовая единица
|
шт |
|
Производитель
|
Huawei |
|
PoE бюджет, W
|
370 |
|
Интерфейсы 10/100BaseTX
|
24 |
|
Тип устройства
|
Коммутатор |
|
Количество основных портов
|
24 |
|
Интерфейсы 1000BaseX SFP
|
4 |
|
Интерфейсы 10/100/1000BaseT
|
2 |
