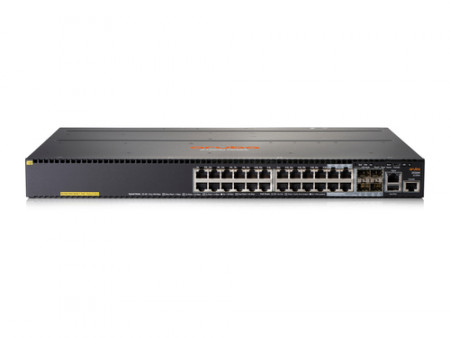

Коммутатор HP 2930M 24G PoE+, JL320A

Артикул:

JL320A

272 135 ₽

3700$

Курс ЦБ 73.55
на

Нашли дешевле?

Гарантия 12 месяцев

- +

В корзину

Купить в 1 клик

Пообщаться с менеджером

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Сравнить

Избранное

Загрузить в pdf

Описание

Характеристика

Коммутатор Aruba 2930M 24G PoE+ 1-slot

I/O ports and slots	20 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T IEEE 802.3at PoE+); Duplex: 10BASE‑T/100BASE-TX:half or full;1000BASE-T:full only 4 Combo 10/100/1000BASE-T PoE+ or 100/1000Mbps SFP Ports
Additional ports and slots	1 Dual Personality (RJ-45 or USB Micro-B) serial console port 1 USB B port for uploading/ downloading files 1 100BASE-T Out of Band Management Port 1 Uplink Slot 1 Stacking Module Slot 2 Power Supply Slots (power supplies not included)
Dimensions	4.39cm x 44.25cm x 32.43cm
Weight	4.50 kg
Memory and processor	Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet Buffer Size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4GB eMMC
10 Mbps Latency	< 98.5us (FIFO 64 byte packets)
100 Mbps Latency	<11.8us (FIFO 64-byte Packets)
1000 Mbps Latency	< 3.1us (FIFO 64-byte packets)
10Gbps Latency	<3.4us (FIFO 64-byte packets)
Throughput	Up to 95.2Mpps
Stacking Performance	100 Gbps
Switching Capacity	128 Gbps
Switching Capacity (including Stacking)	228 Gbps
Routing table Size	10000 entries (IPv4), 5000 entries (IPv6)
Mac Address Table Size	32768 entries
Operating temperature	32˚ F to 131˚F (0° C to 55° C) up to 5000ft, 32˚ F to 122˚F (0° C to 50° C). Derate -1 degree C for every 1000 ft from 5000 ft to 10000 ft
Operating relative humidity	15%to 95% (Non-condens- ing) 10,000 ft
Nonoperating/Storage temperature	-40°C to 70°C up to 15000 ft
Nonoperating/Storage relative humidity	90% at 65°C (non-condens- ing); 15,000 ft
Acoustic	Sound Power LWaD=4.1 Bel, Sound Pressure LpAm, Bystander = 23.7 dB
Frequency	50/60Hz
Maximum Heat Dissipation	279 BTU/hr 314 kJ/hr
Voltage	JL086A PSU: 100-127/200- 240 VAC JL087A PSU: 110-127/200- 240 VAC
Current	JL086A PSU (each): 5A/2.5A JL087A PSU (each): 8.5A/5A
Maximum power rating	JL086A PSU (each): 450W JL087A PSU (each): 810W
Idle Power	63W
PoE Power (Max Possible)	840 Watts
Hibernate Power	23W
Management	Aruba AirWave Network Management IMC—Intelligent Management Center Command-line interface Web browser Configuration menu REST interface SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C, micro USB, Ethernet)
Denial of service protection	• CPU DoS Protection
Device Management	• RFC 1155 Structure and Mgmt Information (SMIv1) • RFC 1157 SNMPv1/v2c • RFC 1591 DNS (client) • RFC 1901 (Community based SNMPv2) • RFC 1901-1907 SNMPv2c, SMIv2 and Revised MIB-II • RFC 1908 (SNMP v1/2 Coexistence) • RFC 2576 (Coexistence between SNMP V1, V2, V3) • RFC 2578-2580 SMIv2 • RFC 2579 (SMIv2 Text Conventions) • RFC 2580 (SMIv2 Conformance) • RFC 2819 (RMON groups Alarm, Event, History and Statistics only) • RFC 3416 (SNMP Protocol Operations v2) • RFC 3417 (SNMP Transport Mappings) • HTML and telnet management • HTTP, SSHv1, and Telnet • Multiple Configuration Files • Multiple Software Images • SNMP v3 and RMON RFC support • SSHv1/SSHv2 Secure Shell • TACACS/TACACS+ • Web UI
General protocols	• IEEE 802.1AX-2008 Link Aggregation • IEEE 802.1D MAC Bridges • IEEE 802.1p Priority • IEEE 802.1Q VLANs • IEEE 802.1s Multiple Spanning Trees • IEEE 802.1v VLAN classification by Protocol and Port • IEEE 802.1w Rapid Reconfiguration of Spanning Tree • IEEE 802.3ab 1000BASE-T • IEEE 802.3ad Link Aggregation Control Protocol (LACP) • IEEE 802.3af Power over Ethernet • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet • IEEE 802.3bz 2.5Gb/s and 5Gb/s interfaces • IEEE 802.3bt 4-pair Power over Ethernet (PoE) • IEEE 802.3x Flow Control • RFC 768 UDP • RFC 783 TFTP Protocol (revision 2) • RFC 792 ICMP • RFC 793 TCP • RFC 826 ARP • RFC 854 TELNET • RFC 868 Time Protocol • RFC 951 BOOTP • RFC 1058 RIPv1 • RFC 1256 ICMP Router Discovery Protocol (IRDP) • RFC 1350 TFTP Protocol (revision 2) • RFC 1519 CIDR • RFC 1542 BOOTP Extensions • IEEE 1588v2 Precision Time Protocol(Transparent Clock Mode) • RFC 1918 Address Allocation for Private Internet • RFC 2030 Simple Network Time Protocol (SNTP) v4 • RFC 2131 DHCP • RFC 2236 IGMP Snooping • RFC 2453 RIPv2 • RFC 2865 Remote Authentication Dial In User Service (RADIUS) • RFC 2866 RADIUS Accounting • RFC 3046 DHCP Relay Agent Information Option • RFC 3411 An Architecture for Describing Simple Network Management Protocol (SNMP) Management Frameworks • RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP) • RFC 3413 Simple Network Management Protocol (SNMP) Applications • RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3) • RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP) • RFC 3416 Protocol Operations for SNMP • RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP) • RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) • RFC 3575 IANA Considerations for RADIUS • RFC 3576 Ext to RADIUS (CoA only) • RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches • RFC 4675 RADIUS VLAN & Priority • RFC 4861 Neighbor Discovery for IP version 6 (IPv6) • RFC 4862 IPv6 Stateless Address Autoconfiguration • RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification • UDLD (Uni-directional Link Detection)
IP Multicast	• RFC 1112 IGMP • RFC 2236 IGMPv2 • RFC 2710 Multicast Listener Discovery (MLD) for IPv6 • RFC 3376 IGMPv3 • RFC 3973 PIM Dense Mode • RFC 4601 PIM Sparse Mode • RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches • RFC 5059 Bootstrap Router—Except for scope zones • RFC 7761 PIM Sparse Mode
IPV6	• RFC 1981 IPv6 Path MTU Discovery • RFC 2080 RIPng for IPv6 • RFC 2081 RIPng Protocol Applicability Statement • RFC 2082 RIP-2 MD5 • RFC 2460 IPv6 Specification • RFC 2464 Transmission of IPv6 over Ethernet Networks • RFC 2710 Multicast Listener Discovery (MLD) for IPv6 • RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only) • RFC 2925 Remote Operations MIB (Ping only) • RFC 3019 MLDv1 MIB • RFC 3315 DHCPv6 (client and relay) • RFC 3484 Default Address Selection for IPv6 • RFC 3513 IPv6 Addressing Architecture • RFC 3596 DNS Extension for IPv6 • RFC 3810 MLDv2 for IPv6 • RFC 4022 MIB for TCP • RFC 4113 MIB for UDP • RFC 4251 SSHv6 Architecture • RFC 4252 SSHv6 Authentication • RFC 4253 SSHv6 Transport Layer • RFC 4254 SSHv6 Connection • RFC 4291 IP Version 6 Addressing Architecture • RFC 4293 MIB for IP • RFC 4419 Key Exchange for SSH • RFC 4443 ICMPv6 • RFC 4541 IGMP & MLD Snooping Switch • RFC 4861 IPv6 Neighbor Discovery • RFC 4862 IPv6 Stateless Address Auto-configuration • RFC 5095 Deprecation of Type 0 Routing Headers in IPv6 • RFC 6620 FCFS SAVI • draft-ietf-savi-mix
MIBs	• IEEE 802.1ap (MSTP and STP MIB’s only) • IEEE 8021-Bridge-MIB (2008) • IEEE 8021-Q-Bridge-MIB (2008) • RFC 1155 Structure & ID of Mgmt Info for TCP/IP Internets • RFC 1156 (TCP/IP MIB) • RFC 1157 A Simple Network Management Protocol (SNMP) • RFC 1213 MIB II • RFC 1493 Bridge MIB • RFC 1724 RIPv2 MIB • RFC 2021 RMONv2 MIB • RFC 2578 Structure of Management Information Version 2 (SMIv2) • RFC 2579 Textual Conventions for SMIv2 • RFC 2580 Conformance Statements for SMIv2 • RFC 2613 SMON MIB • RFC 2618 RADIUS Client MIB • RFC 2620 RADIUS Accounting MIB • RFC 2665 Ethernet-Like-MIB • RFC 2668 802.3 MAU MIB • RFC 2674 802.1p and IEEE 802.1Q Bridge MIB • RFC 2737 Entity MIB (Version 2) • RFC 2819 RMON MIB • RFC 2863 The Interfaces Group MIB • RFC 2925 Ping MIB • RFC 2932 IP (Multicast Routing MIB) • RFC 2933 IGMP MIB • RFC 3414 SNMP-User based-SM MIB • RFC 3415 SNMP-View based-ACM MIB • RFC 3417 Simple Network Management Protocol (SNMP) over IEEE 802 Networks • RFC 3418 MIB for SNMPv3 • RFC 4836 Managed Objects for 802.3 Medium Attachment Units (MAU)
Network Management	• IEEE 802.1AB Link Layer Discovery Protocol (LLDP) • RFC 1155 Structure of Management Information • RFC 1157 SNMPv1 • RFC 2021 Remote Network Monitoring Management Information Base Version 2 using SMIv2 • RFC 2576 Coexistence between SNMP versions • RFC 2578 Structure of Management Information Version 2 (SMIv2) • RFC 2579 Textual Conventions for SMIv2 • RFC 2580 Conformance Statements for SMIv2 • RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events) • RFC 2819 Remote Network Monitoring Management Information Base • RFC 2856 Textual Conventions for Additional High Capacity Data Types • RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations • RFC 3164 BSD syslog Protocol • RFC 3176 sFlow • RFC 3411 SNMP Management Frameworks • RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP) • RFC 3413 Simple Network Management Protocol (SNMP) Applications • RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3) • RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP) • RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) • RFC 5424 Syslog Protocol • ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDPMED) • SNMPv1/v2c/v3 • XRMON
QoS/CoS	• IEEE 802.1p (CoS) • RFC 2474 DiffServ Precedence, including 8 queues/port • RFC 2475 DiffServ Architecture • RFC 2597 DiffServ Assured Forwarding (AF) • RFC 2598 DiffServ Expedited Forwarding (EF) • Ingress Rate Limiting
Security	• IEEE 802.1X Port Based Network Access Control • RFC 1321 The MD5 Message-Digest Algorithm • RFC 1334 PPP Authentication Protocols (PAP) • RFC 1492 An Access Control Protocol, Sometimes Called TACACS • RFC 1492 TACACS+ • RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP) • RFC 2082 RIP-2 MD5 Authentication • RFC 2104 Keyed-Hashing for Message Authentication • RFC 2138 RADIUS Authentication • RFC 2139 RADIUS Accounting • RFC 2246 Transport Layer Security (TLS) • RFC 2548 Microsoft Vendor-specific RADIUS Attributes • RFC 2618 RADIUS Authentication Client MIB • RFC 2620 RADIUS Accounting Client MIB • RFC 2698 A Two Rate Three Color Marker • RFC 2716 PPP EAP TLS Authentication Protocol • RFC 2818 HTTP Over TLS • RFC 2865 RADIUS (client only) • RFC 2865 RADIUS Authentication • RFC 2866 RADIUS Accounting • RFC 2867 RADIUS Accounting Modifications for Tunnel Protocol Support • RFC 2868 RADIUS Attributes for Tunnel Protocol Support • RFC 2869 RADIUS Extensions • RFC 2882 NAS Requirements: Extended RADIUS Practices • RFC 3162 RADIUS and IPv6 • RFC 3576 Dynamic Authorization Extensions to RADIUS • RFC 3579 RADIUS Support For Extensible Authentication Protocol (EAP) • RFC 3580 IEEE 802.1X RADIUS • RFC 3580 IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines • RFC 4576 RADIUS Attributes • Access Control Lists (ACLs) • draft-grant-tacacs-02 (TACACS) • Guest VLAN for 802.1X • MAC Authentication • MAC Lockdown • MAC Lockout • Port Security • Secure Sockets Layer (SSL) • SSHv2 Secure Shell • Web Authentication
