-----Коммутатор Huawei, CE6855-HI-F-B0A

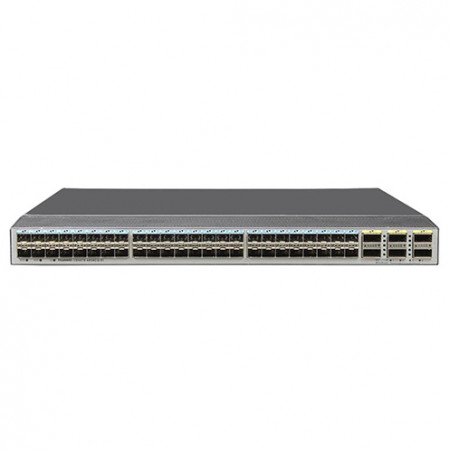

Коммутатор Huawei, CE6855-HI-F-B0A

Артикул:

CE6855-HI-F-B0A

458 659 ₽

6100$

Курс ЦБ 75.19
на

Нашли дешевле?

Гарантия 12 месяцев

- +

В корзину

Купить в 1 клик

Пообщаться с менеджером

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Сравнить

Избранное

Загрузить в pdf

Описание

Характеристика

CE6855-48S6Q-HI Switch (48-Port 10G SFP+, 6-Port 40GE QSFP+, 2*AC Power Module, 2*FAN Box, Port-side Exhaust)

SFP+ ports	48
QSFP+ ports	6
Switching capacity	1.44 Tbit/s
Forwarding rate	1080 Mpps
Airflow design	Front-to-back or back-to-front
Device virtualization	iStack Super Virtual Fabric (SVF)
Network virtualization	M-LAG TRILL VXLAN routing and bridging (CE6800HI) BGP-EVPN (CE6800HI)
VM awareness	Agile Controller
Network convergence	FCoE DCBX, PFC, ETS
Programmability	OpenFlow OPS Puppet, and OVSDB plugins released on open source websites Linux container for open source and customization programming
Traffic analysis	NetStream sFlow
VLAN	Adding access, trunk, and hybrid interfaces to VLANs Default VLAN QinQ MUX VLAN GVRP
ACL	Ingress 14750 Egress 1000
MAC address table	Maximum : 288k Dynamic learning and aging of MAC addresses Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses MAC address limiting based on ports and VLANs
ARP (Maximum)	128k
IPv4 FIB (Maximum)	256k
IP routing	IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+
IPv6	IPv6 Neighbor Discovery (ND) Path MTU Discovery (PMTU) TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6
IPv6 FIB (Maximum)	128k
Multicast FIB (Maximum)	8k
Multicast	IGMP, PIM-SM, PIM-DM, MSDP, and MBGP IGMP snooping IGMP proxy Fast leave of multicast member interfaces Multicast traffic suppression Multicast VLAN
MPLS	MPLS (CE6800HI)
Reliability	LACP STP, RSTP, VBST, MSTP BPDU protection, root protection, and loop protection Smart Link and multi-instance DLDP ERPS (G.8032) VRRP, VRRP load balancing, and BFD for VRRP BFD for BGP/IS-IS/OSPF/Static route
QoS	Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority Actions of ACL, CAR, re-marking, and scheduling Queue scheduling algorithms, including PQ, WRR, DRR, PQ+WRR, and PQ+DRR Congestion avoidance mechanisms, including WRED and tail drop Traffic shaping
Configuration and maintenance	Console, Telnet, and SSH terminals Network management protocols, such as SNMPv1/v2c/v3 File upload and download through FTP and TFTP BootROM upgrade and remote upgrade 802.3az Energy Efficient Ethernet (EEE) Hot patches User operation logs ZTP
Security and management	802.1x authentication Command line authority control based on user levels, preventing unauthorized users from using commands DoS, ARP, and ICMP attack defenses Port isolation, port security, and sticky MAC Binding of the IP address, MAC address, interface number, and VLAN ID Authentication methods, including AAA, RADIUS, and HWTACACS Remote Network Monitoring (RMON)
Dimensions (W x D x H, mm)	442 x 420 x 43.6
Weight (fully loaded)	12.6 kg (27.8lb)
Environmental parameters	Operating temperature: 0°C to 40°C (32°F to 104°F) (0 m to 1,800 m) Storage temperature: -40°C to +70°C (-40°F to 158°F) Relative humidity: 5% RH to 95% RH, non-condensing
Operating voltage	AC: 90-290V DC: -38.4V to -72V
Max. power consumption	216 W
