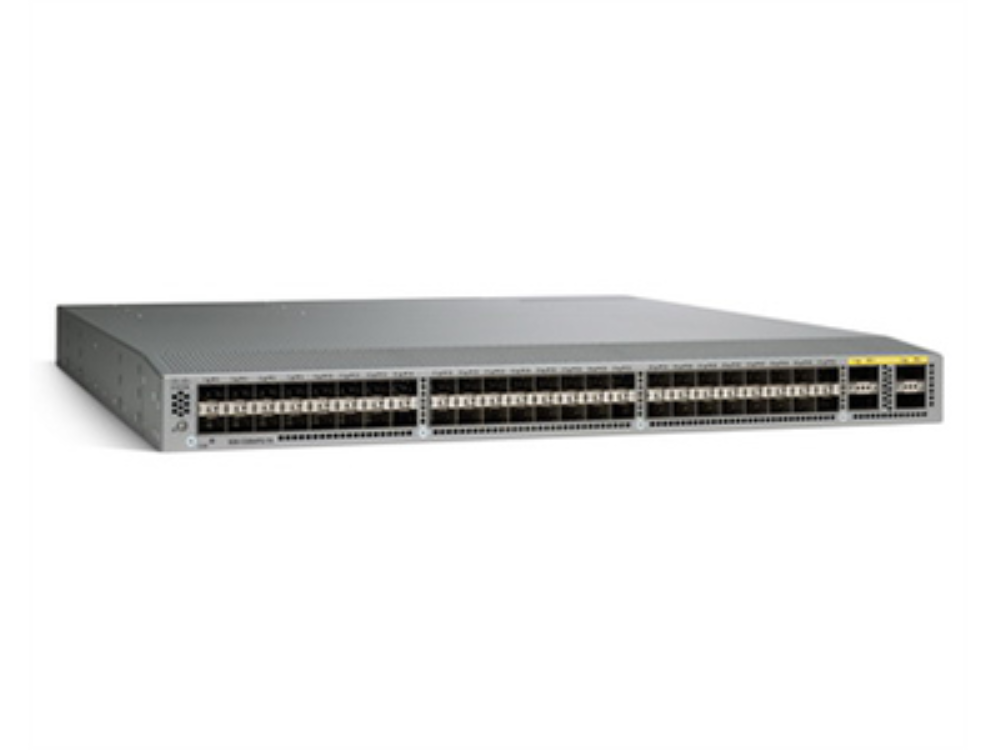

Коммутатор Cisco Nexus N3K-C3064PQ-10GE

Артикул:

N3K-C3064PQ-10GE

221 910 ₽

3000$

Курс ЦБ 73.97
на

Нашли дешевле?

Гарантия 12 месяцев

- +

В корзину

Купить в 1 клик

Пообщаться с менеджером

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Сравнить

Избранное

Загрузить в pdf

Описание

Характеристика

Управляемый коммутатор Layer3, 48 портов 100/1000/10GBase-X (SFP+/SFP), 4 порта QSFP+, N3K-LAN1K9, два блока питания AC

Технические характеристики

Device Type	Switch - 64 ports - L3 - managed
Enclosure Type	Rack-mountable - 1U
Ports	48 x SFP+ + 4 x QSFP+
Performance	Switching capacity : 1.28 Tbps
Capacity	Virtual interfaces (VLANs) : 4096 Multiple Spanning Tree Protocol instances : 64 Rapid Spanning Tree Protocol instances : 512
MAC Address Table Size	128K entries
Jumbo Frame Support	9216
Routing Protocol	RIP-2, BGP, IGMPv2, VRRP, PIM-SM, IGMPv3, PIM-SSM, MSDP
Remote Management Protocol	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Encryption Algorithm	AES
Authentication Method	RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2)
Features	Routing, layer 2 switching, VLAN support, Syslog support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Virtual Route Forwarding-Lite (VRF-Lite), Unicast Reverse Path Forwarding (URPF), Rapid Per-VLAN Spanning Tree Plus (PVRST+)
Compliant Standards	IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
Interfaces	1 x console - RJ-45 - management 2 x 1000Base-T - RJ-45 - management 48 x SFP+ 4 x QSFP+ 1 x USB
Power Device	Internal power supply - hot-plug
Installed Qty	0 (installed) / 2 (max)
Power Redundancy	Optional
Voltage Required	AC 120/230 V ( 50/60 Hz )
Compliant Standards	CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1, GB 4943
Approximate Width	17.3 in
Approximate Depth	19.9 in
Approximate Height	1.7 in
Approximate Weight	20.5 lbs
Min Operating Temperature	32
Max Operating Temperature	104
Humidity Range Operating	10 - 85% (non-condensing)
Min Storage Temperature	40
Max Storage Temperature	158
